What ever your needs, “Rely on Ryle” to custom Build your sprockets. We have thousands of drawings in house or we build your sprocket to your exact specifications. We also make custom Roller Chain and Engineering Class Chain Sprockets. Call us today! 1-800-433-0960

custom sprockets ryle

We make all types of custom sprockets including:

  • For sizes 25 – 240 roller chain, ¼” through 3” pitch, single and multiple strand
  • Bored to Size
  • Taper Bore
  • “QD”
  • Custom machining per customers specifications
  • Extended pitch sizes roller chain 2040, 2042, 2050, 2052, 2060, 2062, 2080, 2082, 2100, 2102, 2120, 2122, 2160, 2162
  • Flame Cut for engineering class and conveyor chains
  • Stainless Steel Sprockets
  • Double-Single
  • Chain Couplings
  • Split Sprockets
  • Idler Sprockets
  • Custom sprockets for Oilfield Equipment
  • Mining Equipment
  • Industrial Equipment
  • Food Equipment
  • & Agriculture Equipment

Custom Sprockets Material Specifications:

  • C1040 lower manganese plate
  • 1045 bar stock
  • Forging rings
  • Induction hardening heat treat for hardness uniformity
  • Material certification available upon request at the time of order

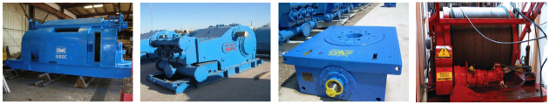

custom sprockets drawworks

Drawworks Sprockets:
Ryle Manufacturing makes custom sprockets for oilfield drawworks. These sprockets are usually larger pitch 1-1/4” for size 100 roller chain up to 3” pitch 240 roller chain. In most cases these sprockets are for multiple strand roller chain to carry large loads. Driver sprockets with hardened teeth are common for longer life.
Special jaw teeth are machined on the side for jaw clutch applications.

Exact bores can be machined with keyways or QD hubs can be provided to accept finished bores with QD bushings.

custom sprockets mud pumps
Mud Pump Sprockets:

Ryle Manufacturing makes custom sprockets for oilfield mud pumps. These sprockets transfer the power from the power source (drawworks) to the mud pumps. 1” pitch through 3” pitch 80 – 240 single and multiple strand sprockets for Simplex, Duplex and Triplex Pump chains. A driver sprocket with hardened teeth for longer life is a good option.

custom sprockets rotary tables
Rotary Table Sprockets:

Ryle Manufacturing makes custom sprockets for oilfield rotary tables. These sprockets transfer the power from the drawworks to the rotary table.

custom_sprokets compound chain box
Compound Chain Box Sprockets:

Ryle Manufacturing makes heavy duty sprockets for compound chain boxes. Compound chain boxes transfer power from the drilling rig engines to the drawworks and mud pumps. Compound chain box sprockets are mounted on shafts in an enclosed lubricated box connected directly to the rig engines.

custom sprokets wench sprockets
Winch Sprockets:
Ryle Manufacturing makes sprockets unique to oilfield truck winches. They are usually size ¾” pitch size 60 roller chain and 1” pitch size 80 roller chain, single and double strand and hardened teeth. The size 80 roller chain, single and double strand sprockets are by far the most popular for oilfield winch sprockets.
The unique feature on oilfield winch sprockets is the keyway. The keyways found on winch sprockets are either oversized, undersized or standard sized on common shaft sizes. The most common keyways found on oilfield winch sprockets are oversized i.e. a 1-1/4” shaft has a 5/16” keyway instead of a standard ¼” keyway.
Ryle carries a large stock of oilfield winch sprockets for immediate delivery.
